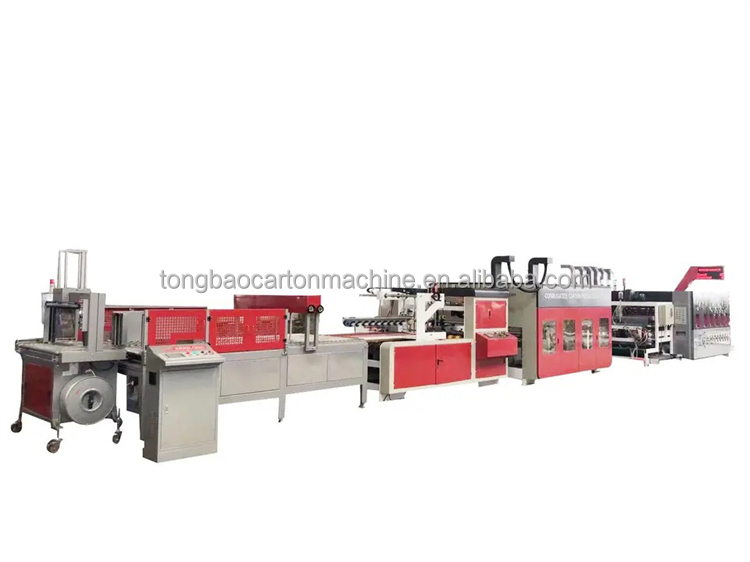

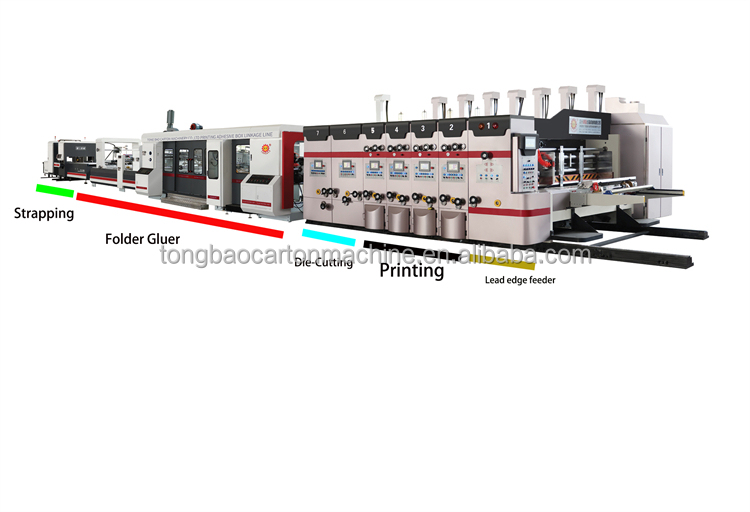

Automatic Folder Gluer Inline Corrugated Box Flexo Printing Machine with 1200mm Width

Name: Automatic Folder Gluer Inline Corrugated Box Flexo Printing Machine with 1200mm Width
Brand: TongBao
Price: 185 USD

Automatic Folder Gluer Inline Corrugated Box Flexo Printing Machine with 1200mm Width Manufactures

Brand Name : TongBao

Condition : New

Warranty : 1 Year

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Hot Product 2023

Warranty of core components : 1 Year

Core Components : Pressure vessel, Engine, PLC

Type : new

Key Selling Points : Long Service Life

Weight (KG) : 60000 KG

Product name : Automatic Printing Slotting Die cutting Folder Gluer Strapping INLINE

Max. Machine Speed : 10000pcs/H

Max Printing Area : 1200x2200mm

Max. Paperboard Size : 1200x2400mm

Min. Paperboard Size : 350x500mm

Standard printing plate thickness : 7.2mm

Slotting Accuracy : ±1.0

Max. slotter depth : 400mm

Suit corrugated thickness : 2-12mm

Die cut precision : ±1.0

Packaging Details : Wrapped in plastic film, fixed by iron sheet

Port : tianjin

Price : $185,000.00/sets >=1 sets

MOQ : 1pc

Contact Now

Product Description

Automatic Folder Gluer Inline Corrugated Box Flexo Printing Machine with 1200mm Width

Specification

Max. Machine Speed	10000pcs/H
Max Printing Area	1200x2200mm
Max. Paperboard Size	1200x2400mm
Min. Paperboard Size	350x500mm
Standard printing plate thickness	7.2mm
Slotting Accuracy	±1.0
Max. slotter depth	400mm
Suit corrugated thickness	2-12mm
Die cut precision	±1.0

FUNCTION OF FEEDING

1)Adopt negative pressure suction flat sun feeding device, suit for any type flute board and any direction feeding, and ensure feeding accuracy. 2)Feeding gap accurate adjustment, never damaged strength of the corrugate board 3)Adopt pneumatic locking, with protection for overdrive, safe for operation. 4)The roller wheel type lead edge feeding vacuum feeding system ensure warped paperboard feeds accurately, skip feeding for large paperboard printing requirement. Automatic return to zero position. Motorized adjustment of feeding roll gap . Continue feeding and skip feeding function

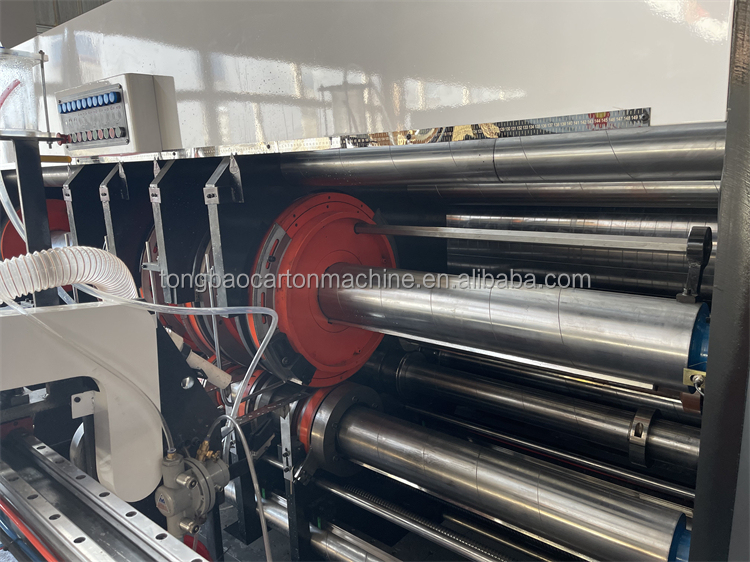

FUNCTION OF PRINTING DEPARTMENT

1. The vacuum transfer adopted for the whole process feeding is able to feed the cardboard smoothly and precisely which improve the printing precise. 2. The gap between vacuum cabinet and printing roller adjusted by PLC and touch screen. 3. Roller undergoes grinded and plated with rigid chrome, make the balance rectification for running stable. 4. Ceramic anilox and doctor blade structure. 5. Ceramic anilox roller external diameter is ¢212 mm, steel pipe is plated with ceramic grinded surface and laser-carved anilox. 6. Close type doctor blade system and innovated ink-closed design to make the ink distributed very well, save ink. 7. Pneumatic lock, doctor blade compensition structure to make the ceramic roller touch with doctor well for good ink distribution effect. 8. Printing roller diameter: 300mm(including 7.2mm printing plate with liner). 9. Printing pressing roller external diameter is ¢188mm,Steel pipe is plated with rigid chrome and grinded surface. 10. Ratchet wheel fixed plate axle. 11. Loading and unloading printing template, electric controlling CW/CCW rolling by foot switch. 12. Printing plate roller traverse PLC control adjustment, movement range +/-5mm. 13. Automatic pneumatic lifting gear working with feeding system(Anilox roller lowers down to touch printing

template during feeding and rises up to leave printing template after stopping feeding.) 14. Printing roller circular move adopts PLC, touch screen control and inverter adjustment of 360o.(running and stopping can be adjusted) 15. Automatic reposition after washing the printing template during the printing procession. 16. Automatic ink washing system.

SLOTTING

1. Creasing wheel with PU Plated for good creasing and avoiding paper crack. 2. Creasing rollers diameter:110mm,plated with rigid chrome and grinded surface,treated by balance rectification. 3. Slotting holder rollers diameter:176mm,plated with rigid chrome and grinded surface,treated by balance rectification. 4. Cast steel slotting guide plates makes slotting precise and never damage the slotting knife. 5. 9 Crsi Slotting knives. 6. All the knives move and slotting holder move adjusted by PLC control. 7. Slotting holder rollers gap adjusted by electric control. 8. One-key adjustment, the computer automatically adjusts the slotting knife.

DIE-CUTTING

Servo motor drive 1. The pad roller adopts a mechanical cam groove movement (40mm) structure. Can move 40mm left and right. 2. Die-cutting roller diameter 300mm, cast iron surface grinding and hard chrome plating. 3. The diameter of the pad roller is 388.9mm, and the surface of the cast iron material is ground and plated with hard chrome. 4. Electric adjustment of the gap between the die-cutting roller and the rubber pad roller. 5. The paper feeding roller gap is adjusted by PLC and touch screen. 6. Feed rollers are finely ground, plated with hard chrome and adjusted for dynamic balance to make the operation more stable. 7. Die-cut phase electric digital 360° adjustment. (Running and stopping can be adjusted). 8. Adopt the speed difference compensation device, no matter how the diameter of the rubber pad changes, the linear speed of the rubber pad will automatically track and compensate without manual adjustment.

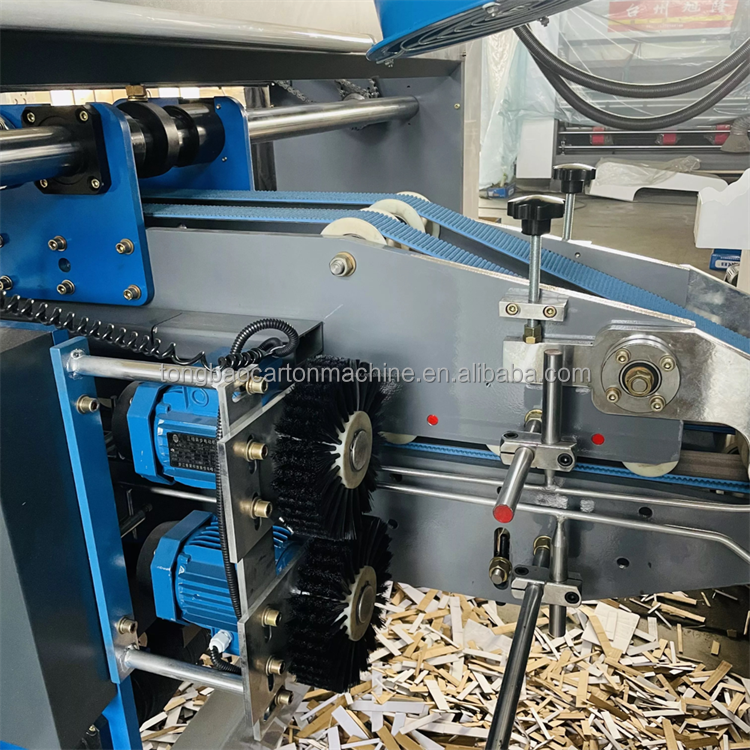

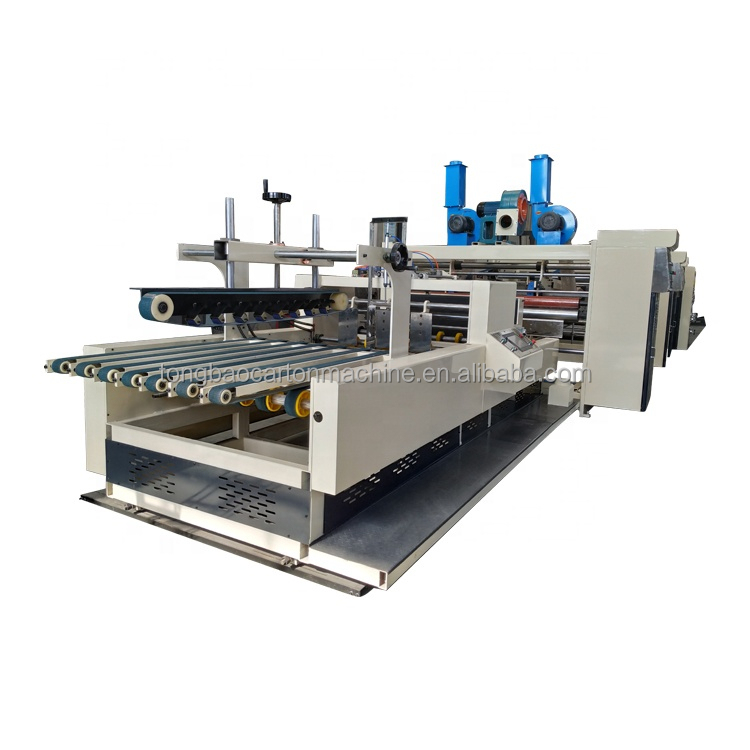

FOLDING GLUING UNIT

Gluer part 1.Glue applicator wheel RMP synchronized with folding belts 2.Volume of glue application suits for speed of main unit 3.Nozzle type glue applicator optional(Length and position of glue application automatically adjustable)

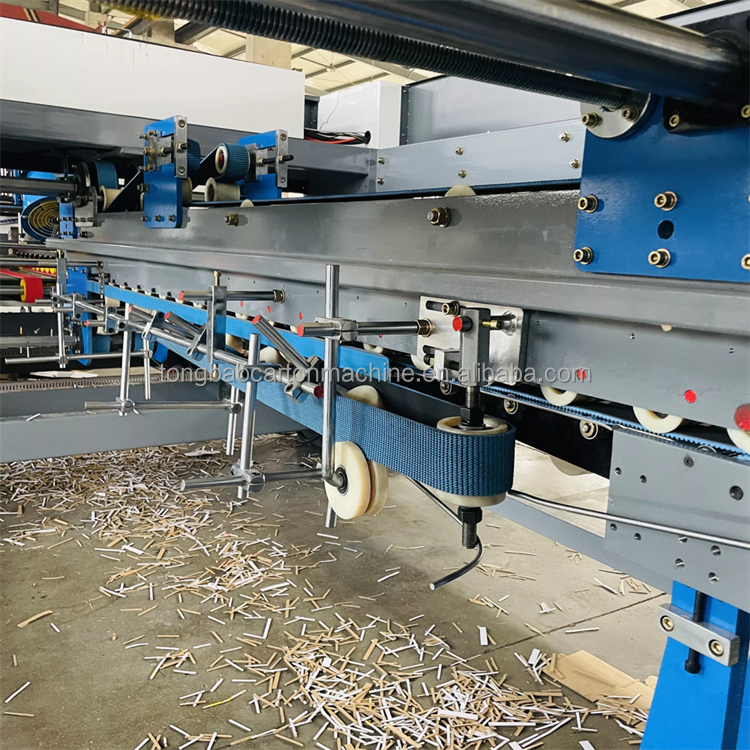

Folding part 1.High-pressure air blower equipped to get rid of wasted scraps existing at glue flaps 2.Folding belts, assisted by vacuum suction, achieve reliable transfer of folding carton 3.Pneumatic control of tension of folding belts, released after machine stops, eliminating belts worn-out 4.Folding guiding wheels equipped at end of folder, achieve precise folding. 5.Both bottom folding belts driven by servo motors independently, greatly reducing big tolerance happened in process of transfer

Stacker 1.Pressurized roller equipped after folding to force forming of glued & folded cartons, pressure motorized adjustable 2.Mechanical organizer pads glued & folded cartons to achieve more precise folding.

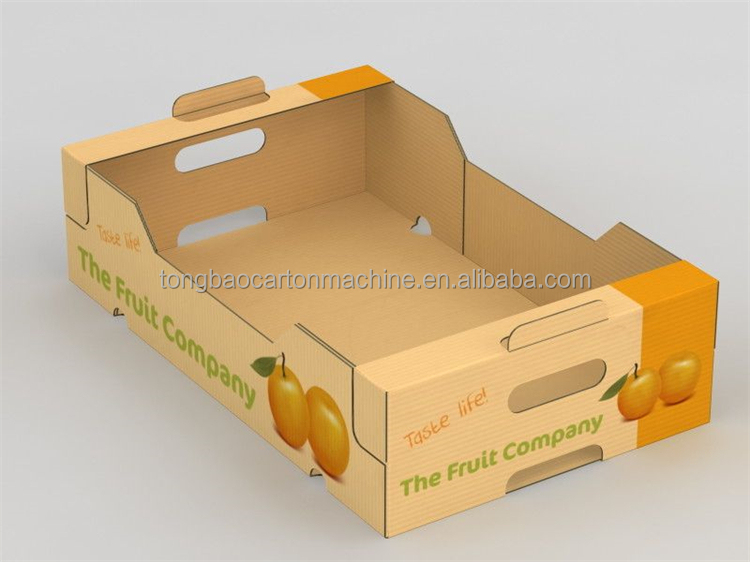

Samples

Packing & Delivery

Company Profile

Our corporation specializes in the development and production of cardboard machinery in Northern China. There are 280 employees in our corporation now and 68 staff members specialize in scientific research and technology. With over 25 years of development, we persist in scientific innovation, import, digesting and absorbing new technology of the domestic and overseas markets incessantly. We have accumulated abundant experience of cardboard machinery design, development and production, and have established a scientific supervising system and a perfect inspection method. Now we are the key & leading enterprise in the cardboard machinery production field in Northern China. We consider great importance of the research and development of new products. We sincerely invite many experts of colleges and institutes every year to make technical directions, so we have great technical strength as our supporter, absorbing the new arts and techniques of the domestic and overseas markets and making our cardboard machinery advanced step by step. Our corporation is located in Dongguang county, Cangzhou city, with Jing-Hu railway, No.104 National Highway (Jingfu highway) and Jing-Hang Great Canal in the west, and Jing-Hu Freeway and a speed-railway in the east. The geographic condition is fine. The transportation is convenient. We warmly welcome guests and friends to come and visit our factory. Our products are sold to about 20 provinces, cities and municipalities of our country and are exported to African and European countries. The quality of our products is reliable; the design of the machines is novel and beautiful. Our goods feature high quality and longevity, enjoying a high reputation among worldwide customers.

Exhibition

FAQ

1. who are we?
We are based in Hebei, China, start from 2004,sell to Domestic Market(00.00%),South Asia(00.00%),Western Europe(00.00%),Mid East(00.00%),Africa(00.00%),Southeast Asia(00.00%),South America(00.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Carton Printing Machine,Die cutting machine,Corrugated production line,Carton machine,corrugated gluer machine

4. why should you buy from us not from other suppliers?
We are professional in carton and corrugated paperboard making machine more than 25 years.Our machine are well apprised by mass clients for many years by good quality, novel exterior appearance, durable, long time and lifelong following service.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
